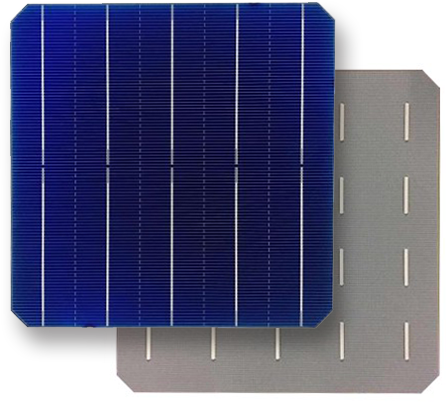

        The product specification of monocrystal solar cell <br/>-156M-5BB

        The product specification of monocrystal solar cell <br/>-156M-5BB

        Type Code：M03 Monocrystal Silicon PERC

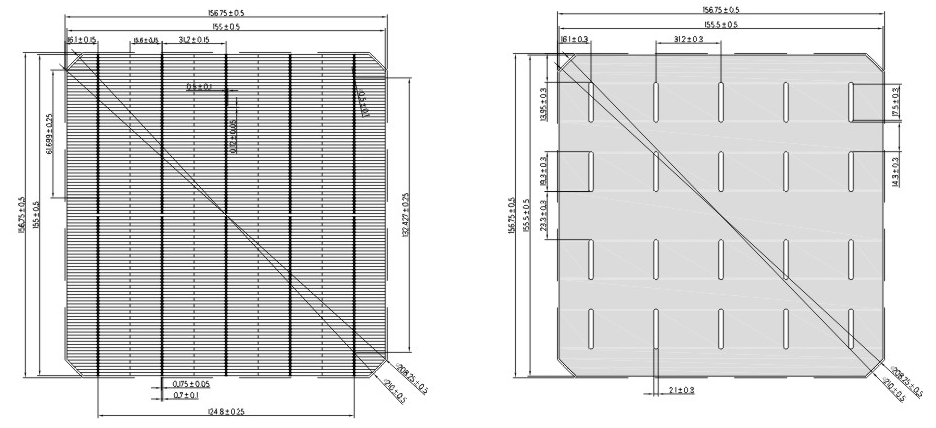

        External Dimension

        1、Dimension：156.75x156.75±0.50mm ; Chamfering：R=1mm

        2、Front Busbar Width：0.7±0.1mm Fingers：104

        3、Rear Busbar Width：2.1±0.3mm

        4、Cell Thickness：180±20um

        Characteristic

        PID- FreeAOI Visual Inspection
        Front Busbar Tension>2N/mmRear Busbar Tension>2N/mm

        Temperature Coefficient

        TKVoltage：a=-0.36%/K

        TKCurrent：b=+0.07%/K

        TKPower ：r=-0.38%/K

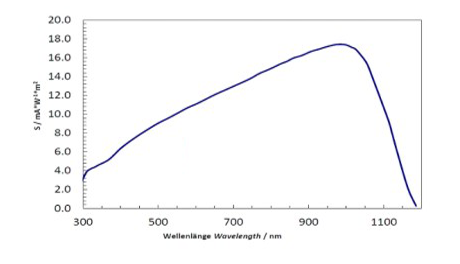

        Spectral Response

        Intensity（W/m2）VocIsc
        10001
        		1
        9000.990.9
        8000.990.8
        6000.980.6
        4000.960.4

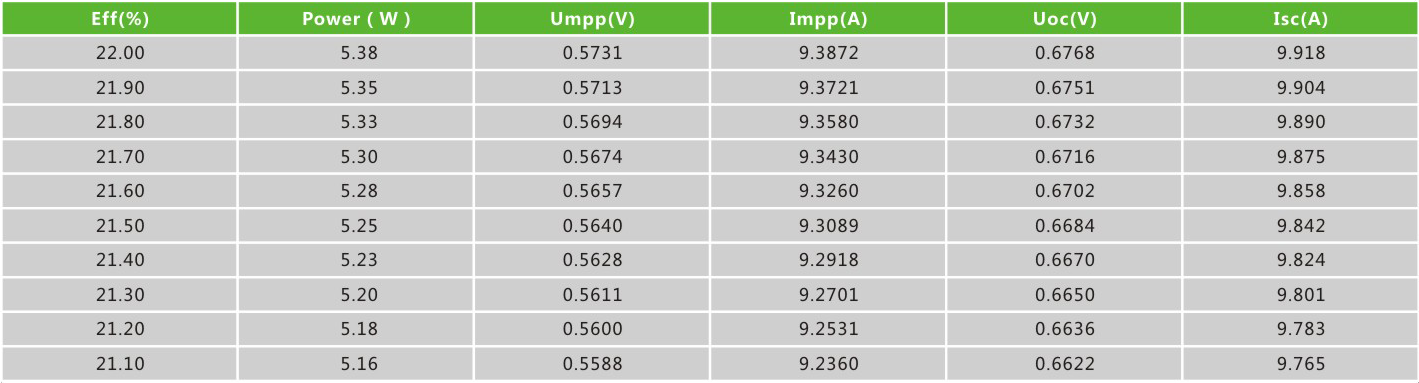

        Electrical Patameters
